The Quarries



special thanks to William Albert Hancock and Nigel Cooper.
Related Links- Millstones
Millstone grit has been quarried out of Mow Cop for many years, it was first used to make querns (hand mills), evidence of these locally manufactured querns was discovered during the 1930’s, when Joe Lovatt’s quarry men were clearing away old piles of rubble. Ironically these, the last of the quarrymen on Mow Cop, had discovered evidence of the first. These querns dated back to at least the Iron Age, which is a good indication of just how long Mow Cop has been worked.
The original quarrying of stone would have been a simple affair, individuals who required a quern or stone for some other reason, would have paid a small fee to the local land owner for the right to fashion a stone.
Later in the 13th century it became more lucrative, with the ownership of the Staffordshire side of Mow belonging to the Manor of Tunstall. In fact the combined revenues for the Manor of Tunstall from Mow Cop quarries was more than the combined income of the other industrial operations such as coal and iron mining.
Joe Lovatt's men moved Mow Cop rock to make new roads in Cheshire

The following is an extract from "Strange News of Staffordshire", which was printed in 1642. The spelling remains unchanged.

At a place neer the common great road betwixt London and Manchester in Staffordshire, called Moule Cop, in the English Maps, but in the old Saxon language Hiperbolian Talke, which is a large hill in English, as Talke of the Hill which signifies a bush on a Hill: Mow this Moule Cop Hill is a vast sublime place very mountainous and devious no common passage over it, but carriages have happened to come thither for millstones and grinding stones, which now are not there to be gotten, by reason to Lords of that soyle are at strife and variance there, about contesting for the seigniory. This hill is four or five miles from the top to the bottome, and on the top is a large plain, wherein those millstones have beene gotten out: And the place where the great quarries were, and in depth ion the hill top four score yards, and in length and latitude a hundred yards round each way; And over the top of that Hill goeth a straight line which divideth Staffordshire and Cheshire assunder.

It was during the 17th century that the quarried rock was pounded into fine white almost pure quartz. This was added to Staffordshire potters clay to improve the colour and hardness of the pottery. Gilbert Wedgwood, who left his family home on Mow Cop to set up as a master potter in Burslem in 1616, possibly started this. Women and children pounded the stone, and then using mules transported the sand to the towns.
It was during the 18th and 19th century that quarrying became big business on Mow Cop, the following are quotes from advertisements found in the "Staffordshire Advertiser"

  • STONE FOR ROAD MAKING. "the stone must be broken sufficiently small to be passed through a 3 inch ring and is intended to be paid for according to measure by the cubic yard" .................24 April 1819
  • MILL STONES. " The quarries at Mole Cop, Staffordshire having been lately re opened, and experienced workmen being engaged to construct Mill Stones of any size" --" It is well known that Mole Cop stone is superior to any other in the kingdom, for the purpose of mealing".............1 April 1826
  • TO EARTENWARE MANUFACTURERS AND OTHERS. " an extensive quarry of excellent grit stone lying within and under certain premises called the Black Bank, situate near Mow Cop about four miles from Staffordshire Potteries, where a ready sale of the indispensable material in the firing of earthenware and other purposes may be obtained"

Perhaps the greatest of the Millstone makers was William Jamieson (1825-1884); his stones were some of the most renowned that had been chiseled from Mow Cop stone. They were sold nationally and internationally and always bore the inscription `Jamieson Mow Cop' I was given a copy of a receipt for two of Jamieson’s Millstones dated May 31st 1841. They were £11.10 shilling each, with 7 shillings for stone transportation.
The land at this time was owned by the Sneyd's, and in their rental accounts from the 1830's William Jamieson appears, paying £20 a year to Ralph Sneyd for a house and a quarry.
The census returns of 1841 lists 6 people living in the Jamieson household.

William Jamieson 46 Millstone Maker
Agnes Jamieson 45
William Jamieson 15 Apprentice (Nephew)
George Jamieson 12 Apprentice
George McAllen 20 Stonemason
Betty McAllen 20

By the time the 1871 census was taken, William Jamieson's older son, also William was running the
quarry and the subsequent family business.

William Jamieson Head Married 45 Millstone Manufacturer Scotland
Mary Jamieson Wife Married 49   Chesh, Odd Rode
Robert Jamieson Son Single 15 Pupil Teacher National School Staffs, Mow Cop
Sarah Jamieson Daughter Single 13 Scholar Staffs, Mow Cop
William Jamieson Son Single 10 Scholar Staffs, Mow Cop
Mary Jamieson Daughter Single 5 Scholar Staffs, Mow Cop
Ann Harding Servant Single 22 General Servant Staffs, Mow Cop

Again by 1891 The 3rd of the William Jamieson family was running the quarry as listed below, however he was not the eldest.

William Jamieson Head Married 30 Millstone Manufacturer Staffs, Wolstanton
Alice Jamieson Wife Married 28   Staffs, Wolstanton
Alice Mary Jamieson Daughter Single 2   Staffs, Wolstanton
Elizabeth Lawton Servant Single 25 General Servant Chesh, Odd Rode

The Jamieson's were not only quarrymen but also agents for the Sneyds at Mow Cop and were responsible for collecting rent from 79 cottagers on Mow Cop

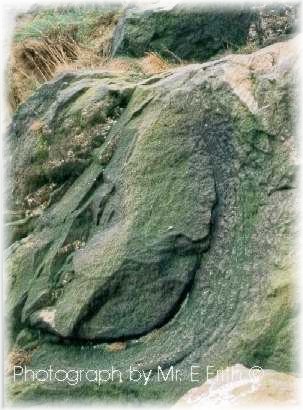

In the photograph on the right you can see in the center of the partly cut millstone, a mark where an axle hole was to be chiseled. This stone is at the bottom of the steps to the rear of the Castle. Two millstones each weighing approximately 25cwt (1300kg) were attached to the end of a timber spar, this was then hauled away by mules to a finishing block.
In 1923 Joe Lovatt purchased most of the quarries and proceeded to clear up the old rubble piles and quarry new rock, mainly for the purpose of road building, this resulted in a legal wrangle with locals and only lasted a few years. The deeds for the land including the Castle were handed over to the National Trust in 1937.

Even though Lovatt's large quarrying company had now finished on Mow Cop, there were other smaller quarry firms.
Charles Hancock and his son and 2 son in laws, Roger Lancaster and Cyril Baddeley formed the quarrying company
"Lancaster Hancock & Baddeley" in 1935.
Charles Hancock was step brother in law to Joe Lovatt, and had moved into Joe's house West View in Primitive Street.
Charles company owned all the land around the Old Man O'Mow but not the Old Man itself, he owned the quarries along Rockside and behind Woodcocks' Well School . The stone was quarried by hand using sledge hammers and metal wedges, then hand mauled into 1 of 4 wagons. They owned 2 Dennis's a Bedford and a brand new Federal. This stone like that of many years before was used for road making in Cheshire.

Glimpses of the old quarrying can be clearly seen as you walk around Mow. There are several partly cut millstones, which were left unfinished for some reason, dark rounded shadows can be made out and radiating tool marks, more examples of these can be found at the base of the Old Man O’Mow. Plug and feather marks can also be seen as well as marks from when blasting was used.

Plug and Feathers

Types of quarrying used on Mow Cop


Plug & feather, a line of holes are drilled into the rock & 2 tapered D sectioned "feathers" are inserted into each hole. A tapered wedge (the "plug"), is then inserted between each pair of feathers. The plugs are gradually and evenly hammered home until the rock splits along the line of holes. This is a superb method of producing stone of the size & shape required & is still used today for producing dimensional stone. When used thus it leaves a characteristic line of short, fairly close spaced 1/2 holes on the cut face. However P&F's can also be used in single or maybe a couple of holes, just to break of a lump that's "in th' road". In this case it can be difficult to spot which method was used.

Lime Blasting, lime is tamped into holes drilled in the rock, moistened with water and left over night. During which time the lime swells and so splits the rock. This method leaves quite large 1/2 holes 2-3" diameter and maybe 2ft long, this was used in some quarries along Mow edge. Apparently the rock could be heard groaning & creaking during the night before finally splitting!

Black powder blasting, the Mow stuff seen uses hole 12-18"ish long & around 1" diameter around 1/3 - 1/2 of the hole was filled with powder, the remaining stemmed with clay, before firing. There are some super examples of this in the "cave" in the edge at the top of Ganny. One in particular still contains the stemming & there is soot blackening around the toe of the hole. There are also good examples in the Mow tunnel. Black powder is also good for producing dimensional stone as is has a much less shattering effect than high explosive blasting. Indeed it continues to be used today on stone such as marble. This was used at Dales Green quarry (Stone Hole) Bill Hancock recalls his mothers house being hit and damaged by flying rocks caused by this type of blasting. There are at least 2 blast shelters in the area. The best example is alomh the paths past Rockside behind Stone Hole. The other is along Fords Lane
behind The Ash Inn, thi is not in such good condition, as the inner walls have all been removed.
